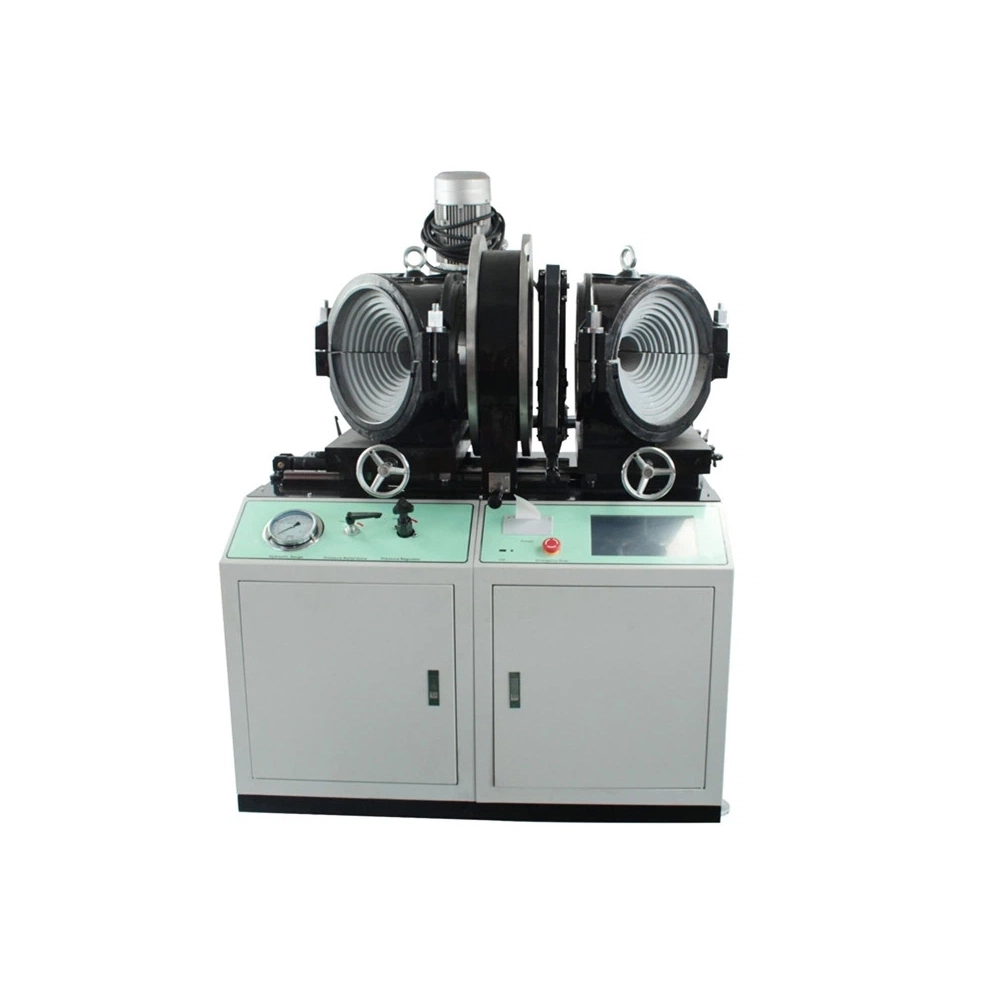

EKMA450 Multi-Angle Fitting Welding Machine

Multi-Angle Fitting Welding Machine

The multi-angle fitting welding machine is specifically designed for welding multi-angle HDPE pipe fittings such as elbows, tees, and reducers. It enables precise multi-angle adjustment, ensuring stable and reliable pipe welding. The equipment is easy to operate and has highly adaptable clamps, making it suitable for various PE pipe fitting processing plants and project sites, improving the forming efficiency and welding quality of complex pipe fittings.

Details

Pipe Fittings Welding Machine Structure

Composed of a heavy-duty frame, multi-angle adjustment mechanism, adaptable pipe clamps, and a stable welding assembly for precise fitting alignment.

1. The main frame supports precise multi-angle adjustment, ensuring accurate positioning for welding elbows, tees, and other complex HDPE fittings.
2. The heating plate provides uniform and stable heating to ensure consistent melting and reliable fusion of pipe fitting surfaces.
3. Holds welded fittings steadily during cooling, helping maintain shape accuracy and joint strength.
4. Highly adaptable clamps securely fix different pipe fitting shapes and sizes, ensuring stable alignment during welding.

Multi-Angle Fittings Welding Machine Specification

Multi-Angle Fitting Welding Machine	Welding Range	Max. Heating Temperature	Temp. Error	Pressure Adjustable Range	Total Power	Power / Voltage of Milling Cutter	Power / Voltage of Heating Plate	Motor Power / Voltage of Hydraulic Station
EKMA315	90mm–315mm	270℃	±5℃	0–10 MPa	8.15KW / 380V	1.5KW / 380V	5.15KW / 380V	1.5KW / 380V
EKMA450	280mm–450mm	270℃	±5℃	0–10 MPa	12.5KW / 380V	1.5KW / 380V	8KW / 380V	3KW / 380V
EKMA630	315mm–630mm	270℃	±5℃	0–16 MPa	28KW / 380V	3KW / 380V	22KW / 380V	3KW / 380V
EKMA800	500mm–800mm	270℃	±5℃	0–16 MPa	38KW / 380V	3KW / 380V	32KW / 380V	3KW / 380V
EKMA1200	710mm–1200mm	270℃	±5℃	0–16 MPa	73.5KW / 380V	4KW / 380V	62KW / 380V	7.5KW / 380V
EKMA1600	710mm–1600mm	270℃	±5℃	0–16 MPa	84KW / 380V	4KW / 380V	72KW / 380V	8KW / 380V

Multi-Angle Pipe Fittings Welding Machine Features

Wide Applicability: It can weld complex pipe fittings such as tees, elbows, oblique tees, and reducing elbows with angles ranging from 0° to 90°, meeting the requirements of special angles in engineering projects.
Adjustability: Equipped with an adjustable angle positioning system to ensure accurate alignment of pipe fittings during welding, avoid misalignment, and improve weld quality.
High Flexibility: This equipment can easily achieve high-quality welding of irregularly shaped pipes and multi-angle joints that are difficult to handle by traditional butt fusion welding machines.
High Welding Strength: The standard hot melt butt welding process is used to achieve a high degree of fusion in the joint, and the weld strength is close to or higher than that of the base material.
Durable: The structure is sturdy and durable. The base and clamps are made of high-strength materials, which are impact-resistant and deformation-resistant, making them suitable for long-term construction and construction site environments.
