EKMC Multi-Angle Pipe Cutting Machine
- Model: EKMC
- Applicable Pipe Diameter: ≤DN1600mm
- Operation Method: electric
- Brand: Ekberg or Customized
- Color: Red or White
- Minimum Order Quantity: 1 Set
- Delivery: 15-30 days
- Terms of Payment: L/C, T/T, Alipay, and others
Introduction

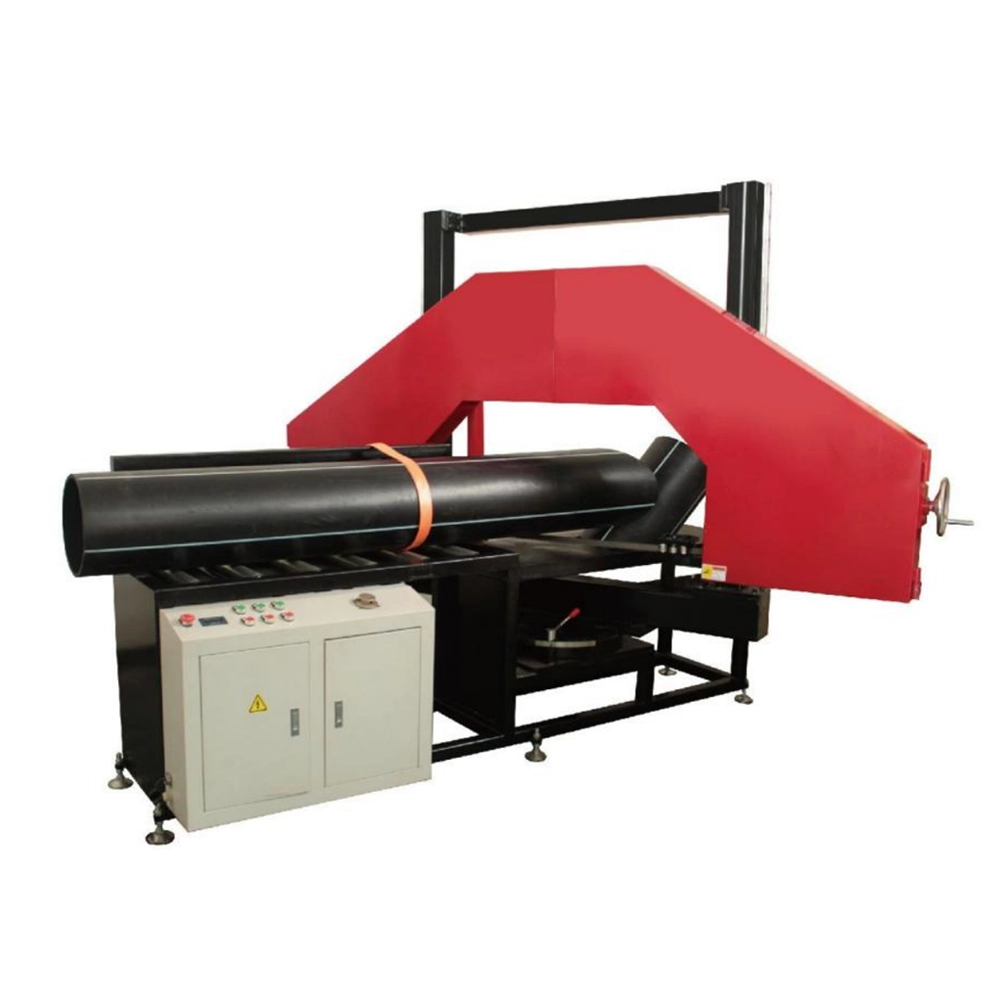

Multi-Angle Pipe Cutting Machine
The multi-angle pipe cutting machine is a professional equipment used for cutting plastic pipes. It utilizes a long, toothed metal blade to achieve stable and precise cutting results. The device is motor-driven and available in various specifications and configurations, allowing for portable or stand-mounted installation depending on construction needs. It provides even cutting force and smooth operation, making it suitable for cutting straight pipes, irregularly shaped pipes, and curved pipes.
- 1. Precise angle cutting design effectively reduces material waste and improves welding efficiency.
- 2. The stable, integrated body structure ensures that the cutting process is free from deviations and vibrations.
- 3. It is suitable for a wide range of materials, including plastic pipes up to DN1600mm, meeting the processing needs of various non-metallic pipes.
- 4. Automatic safety protection mechanisms reduce the risk of human error.
- 5. Low-noise and high-stability design, making it ideal for long-term continuous operation.
Multi-Angle Pipe Cutter Specification
| Multi-Angle Pipe Cutting Machine | EKMC315 | EKMC450 | EKMC630 | EKMC800 | EKMC1200 | EKMC1600 |
|---|---|---|---|---|---|---|
| Cutting Pipe Range | ≤315mm | ≤450mm | ≤630mm | ≤800mm | ≤1200mm | ≤1600mm |
| Max. Cutting ARC | 0–67.5° | 0–67.5° | 0–67.5° | 0–67.5° | 0–67.5° | 0–67.5° |
| Cutting Angle Error | ≤1° | ≤1° | ≤1° | ≤1° | ≤1° | ≤1° |
| Line Speed | 0–255 m/min | 0–255 m/min | 0–255 m/min | 0–255 m/min | 0–255 m/min | 0–255 m/min |
| Feed Speed | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adj |

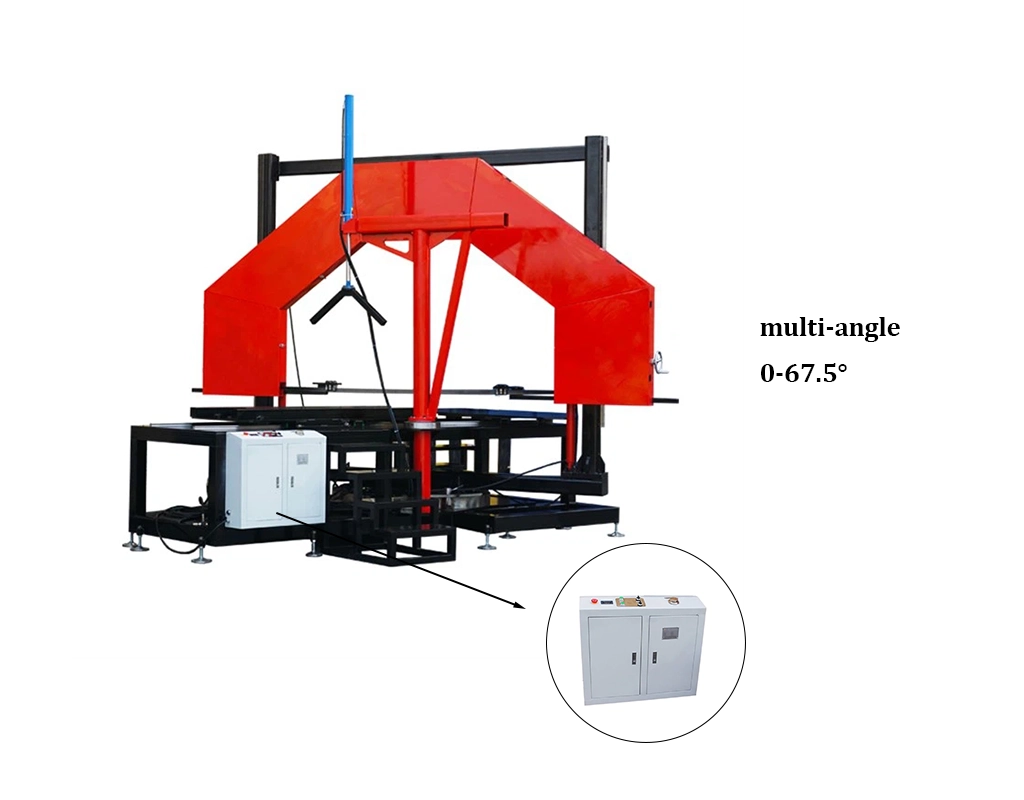

Multi-Angle Pipe Cutting Machine Features
- Supports cutting pipes at specified angles and dimensions, suitable for manufacturing pipe fittings such as elbows, tees, and crosses.
- Cutting angle range: 0–67.5°, precise angle positioning, and high consistency in repetitive cutting.
- Suitable for solid-wall and structured-wall pipes made of thermoplastic materials such as PE and PP.
- Featuring an integrated structural design, the saw body and rotating worktable are highly stable.
- Equipped with a saw blade anomaly detection function, it can automatically shut down, improving operational safety.
- It operates smoothly, has low noise levels, and is easy to operate, making it suitable for on-site construction use.
Large-Diameter Pipe Cutting Machine Application
- Multi-angle pipe cutting machines are used for precise angle cutting when manufacturing elbows, tees, and cross fittings, improving joint accuracy and welding efficiency in plastic pipeline systems.
- Widely applied in PE and PP pipeline cutting for municipal water supply, sewage, and drainage systems, ensuring accurate pipe alignment before butt fusion welding.
- Suitable for thermoplastic pipe cutting in gas distribution and industrial pipeline projects, supporting reliable and safe pipeline connections.
- Ideal for pipe prefabrication and customized cutting in workshops, helping reduce material waste and improve production efficiency.
- Designed for stable operation in construction environments, making it suitable for on-site pipe cutting during installation, repair, and pipeline modification work.
- Applicable to various non-metal pipes and fittings, including solid-wall and structured wall pipes made of PE, PP, and similar thermoplastic materials.
