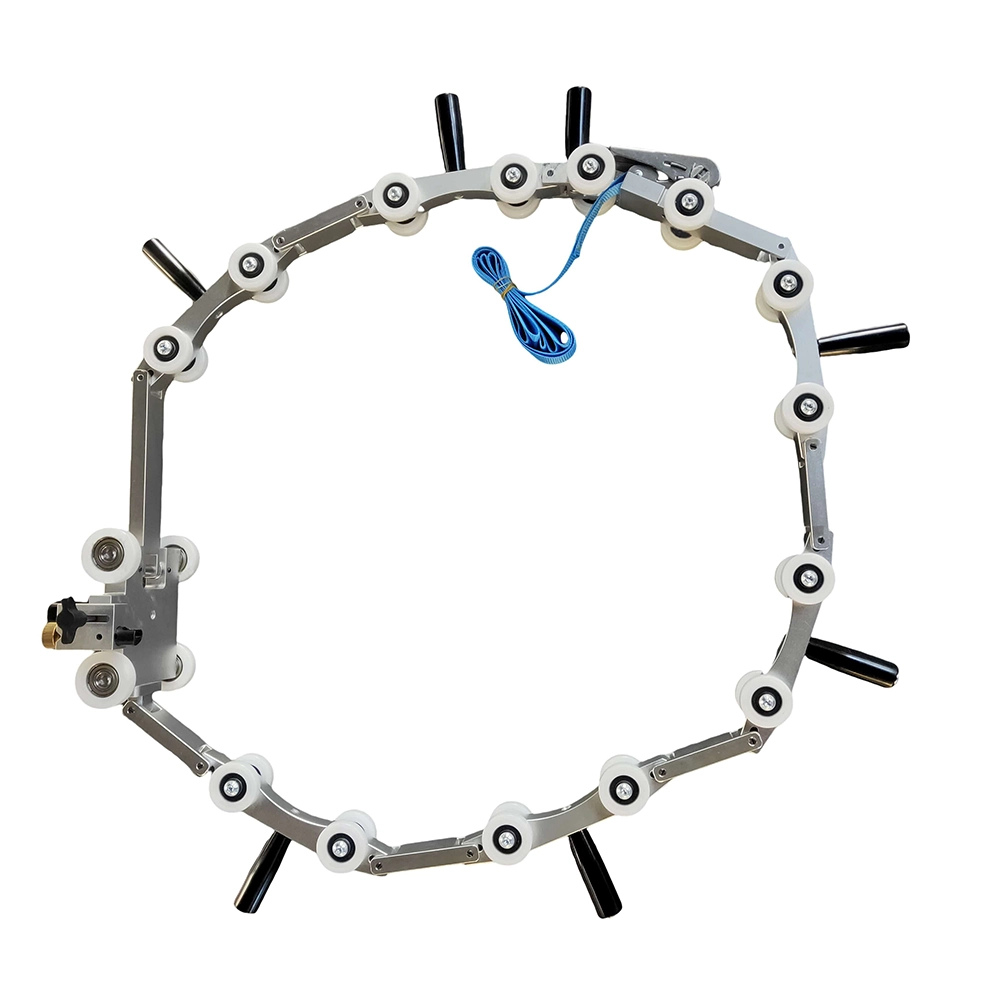

EKLG Large-Diameter Pipe Scraper
- Model: EKLG
- Working Range: 500mm-1600mm
- Operation Method: manual
- Brand: Ekberg or Customized
- Scraper Depth: adjustable
- Minimum Order Quantity: 1 Set
- Delivery: 15-30 days
- Terms of Payment: L/C, T/T, Alipay, and others
Introduction
Large-Diameter Plastic Pipe Scraper
The Ekberg large-diameter Pipe Scraper is designed to remove the outer layer of plastic pipes by fixing the pipe in place and rotating the cutting tool around it. PE pipe scraper enables adjustable feed speed and works together with a sharp alloy blade mounted on a nut-seat tool holder to achieve precise, smooth, and uniform peeling results. It is especially suitable for large-diameter plastic pipes and ensures reliable surface preparation before pipeline welding or installation.

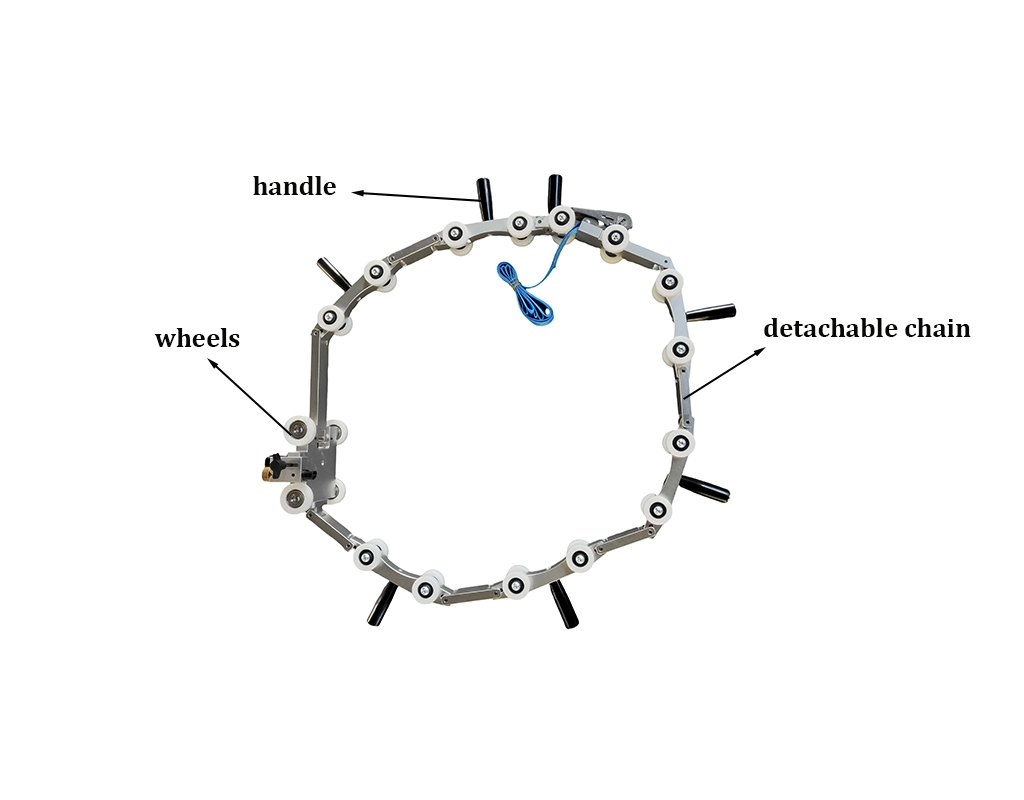

- 1. Pipe fixation with rotating tool design
- 2. The unique adjustable feed system allows operators to control the cutting depth and feed speed, achieving smooth and accurate peeling under different working conditions.
- 3. The tightening mechanism drives multiple rollers to grip the outer wall of the pipe securely, preventing slippage during rotation.
- 4. The blade head can be quickly raised or lowered, allowing fast engagement or disengagement with the pipe surface for easy positioning and operation.
- 5. The locking handwheel enables quick adjustment to accommodate different pipe diameters within the working range.
Large-Diameter HDPE Pipe Scraper
Electric Pipe Cutter Specification
| Large Diameter Pipe Scraper | EKLG36 | EKLGS48 | EKLGS60 |
|---|---|---|---|
| Applicable Pipe Diameter | 500mm–1000mm | 500mm–1200mm | 500mm–1600mm |
| Blade | Hard alloy | Hard alloy | Hard alloy |
| Rotation Speed | Manually adjustable | Manually adjustable | Manually adjustable |
| Scraper Length | Adjusted as required | Adjusted as required | Adjusted as required |
| Drive System | Spiral feed | Spiral feed | Spiral feed |
| Weight | 13.5kg | 17kg | 21kg |
PE Pipe Scraper Features
- Designed for large-diameter plastic pipes from 500mm to 1600mm, suitable for major pipeline projects.
- Operated manually with clockwise rotation, allowing operators to adjust the rotation speed freely according to site requirements.
- Sharp alloy blades combined with controlled feed provide clean, uniform, and professional peeling results.
- The fixed-pipe structure minimizes vibration and ensures reliable performance during long-duration operation.
- The circular cutting method avoids squeezing or damaging the pipe, maintaining the original shape and integrity.
- Built for heavy-duty use in large pipeline construction and industrial applications.
Rotary Pipe Peeler Application
- Ideal for removing oxidation layers before welding or joining large plastic pipes.
- Widely used before butt fusion or electrofusion welding to ensure high-quality, leak-free joints.
- Suitable for large-scale water transmission and distribution pipelines.
- Used in wastewater and drainage pipeline installation and renovation projects.
- Applied in chemical plants, factories, and industrial facilities with large plastic pipelines.
- Designed for field operation where precise and consistent peeling is required for large-diameter pipes.
