Heavy-Duty Butt Fusion Machines for Oil & Gas Pipelines

In energy infrastructure, the difference between a secure transmission line and an environmental catastrophe often comes down to the integrity of a single weld. When selecting butt fusion machines capable of holding 6.3 MPa system pressure, there is no room for compromise. A single failed joint in a DN400 hdpe gas pipe can trigger excavation and repair costs exceeding $50,000—before you even account for regulatory fines or reputational damage. Yet, procurement officers frequently navigate a saturated market, struggling to filter out light-duty drainage equipment masquerading as API-compliant machinery built for the oil field.

This guide cuts through the noise. We will examine global brand tiers, dissect strict welding parameter standards like ISO 21307, and detail the engineering features non-negotiable for high-pressure applications. You’ll learn to spot the critical differences in hydraulic systems, understand why data traceability is your best defense during audits, and how to calculate Total Cost of Ownership (TCO) for major projects. By the end, you will have a solid framework for selecting equipment that handles SDR 7–17 HDPE projects safely and efficiently.

The Critical Demands of Oil & Gas Pipeline Welding

The energy sector operates with a risk profile vastly different from municipal water or agriculture. An irrigation leak is a nuisance; a failure in a high-pressure gas gathering line or produced water transfer system is a disaster. It can lead to explosions, severe environmental contamination, and immediate project shutdowns. Consequently, the machinery joining High-Density Polyethylene (HDPE) pipes in these fields must adhere to engineering standards that far exceed typical construction requirements.

Navigating Standards: API 15LE, ISO 21307, and ASTM F2620

In oil and gas, equipment isn’t just a tool; it’s a compliance instrument. Butt fusion machines must execute welds meeting specific international benchmarks. In North America, the American Petroleum Institute’s API 15LE specification and ASTM F2620 reign supreme, while ISO 21307 dominates the global market.

These standards dictate precise interfacial pressures. Take ISO 21307 Single High Pressure (SHP) as an example: it demands a fusion pressure of 0.52 MPa ± 0.1 MPa (roughly 75 psi). A standard water-grade hdpe pipe welding machine often lacks the power to maintain this force consistently across a large surface area, such as a DN630 HDPE pipe face. Moreover, cooling time under pressure is critical. Using the formula 0.43 * e (where e is wall thickness), a 50mm wall PE pipe needs about 21.5 minutes of cooling under constant hydraulic load. If the hdpe fusion machine’s hydraulics bleed pressure during this window, voids form in the melt zone. The result? Immediate joint rejection during non-destructive testing (NDT).

Environmental Stress Factors in Oil Fields

Oil and gas pipelines don’t enjoy the luxury of controlled factory floors. They are deployed in the shale plays of Texas, the scorching deserts of the Middle East, and on hostile offshore rigs. Butt fusion machines here need an IP54 or higher protection rating to stop sand, conductive dust, and moisture from frying Electronic Control Units (ECU) or scoring hydraulic cylinders.

Temperature swings are another enemy. Equipment must perform flawlessly between -20°C and +50°C. In extreme heat, hydraulic oil viscosity drops, potentially altering effective drag pressure. High-end equipment counters this with advanced hydraulic accumulators and thermal compensation algorithms, ensuring the force applied to the pipe remains constant regardless of the ambient thermometer.

The Cost of Joint Failure in High-Pressure Systems

Sub-standard equipment carries a heavy economic price tag. Industry data suggests unplanned downtime in remote energy operations can hemorrhage upwards of 38 million annually across a fleet of assets. On a granular level, digging up a buried gas line to fix a failed butt fusion joint involves heavy excavation gear, line purging, and re-permitting. Relying on a butt fusion welding machine that lacks the rigidity to prevent misalignment or the power to hold fusion pressure isn’t just risky—it’s a financial gamble savvy engineers refuse to take.

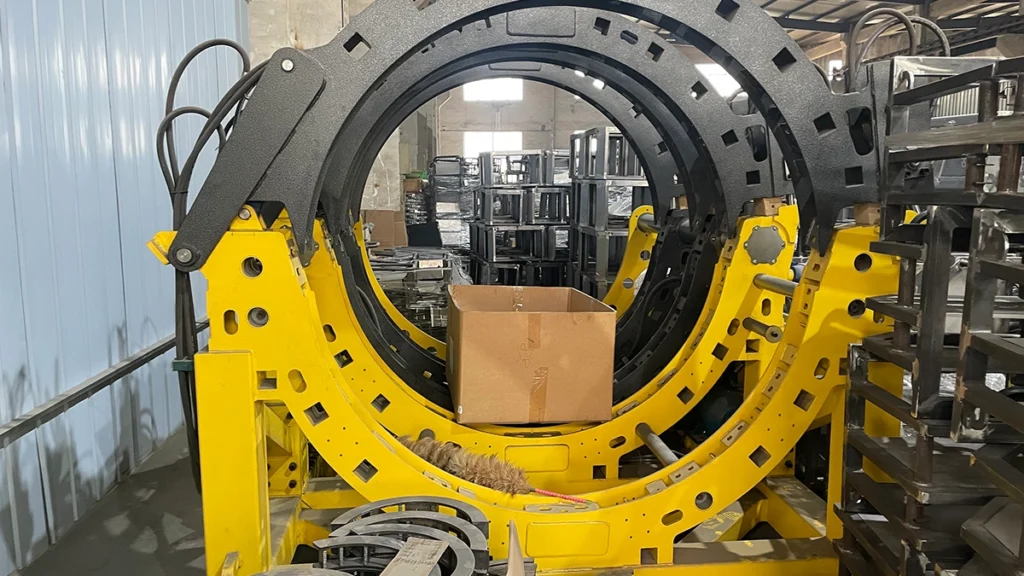

Why Standard Construction Machines Fall Short

Butt fusion machines designed for gravity-fed drainage lines (SDR 26 or SDR 33) simply lack the structural backbone for energy applications. When fusing thick-wall pipes (SDR 7 or SDR 9), the butt fusion welding machine frame fights against immense reactive forces. Light-duty frames flex under this load. Even a millimeter of distortion causes the pipe faces to misalign, creating a “high-low” mismatch that violates the 10% wall thickness tolerance allowed by DVS 2207. Only heavy-duty chassis forged from reinforced steel or high-grade aluminum alloys can withstand these forces without flinching.

Categorizing the Global Landscape of Butt Fusion Brands

To make a smart procurement decision, you need to understand the manufacturer hierarchy. The market generally splits into three tiers, each offering a distinct price-to-performance ratio.

Tier 1: Legacy Market Leaders (North America & Europe)

At the apex sit legacy brands like McElroy (USA) and Ritmo (Italy). These manufacturers have defined the industry standard for decades. Their butt fusion machines are staples in rental fleets because they are durable and backed by extensive distributor networks. If a contractor in West Texas needs a part in four hours, these brands are usually the default answer. However, this accessibility commands a premium—often 30-50% higher than comparable engineered solutions. They are the “safe” bet for budgets with no ceiling, but perhaps not the most capital-efficient choice for ROI-focused contractors.

The Rise of Specialized Heavy-Duty Manufacturers (Ekberg Welding)

Sitting strategically between the ultra-premium legacy brands and generic suppliers is the “Smart Alternative” tier, spearheaded by manufacturers like Ekberg Welding. These companies double down on heavy-duty engineering for the oil and gas sector but use a factory-direct model to keep costs grounded.

Ekberg butt fusion machines incorporate the same Tier 1 components—think Siemens electronics and Rexroth hydraulic valves—so reliability remains absolute. By manufacturing hydraulic cylinders and CNC machining chassis in-house, Ekberg ensures equipment meets the energy sector’s 6.3 MPa system pressure requirements without the “brand tax” attached to legacy marketing. This tier is the sweet spot for project owners and contractors demanding API-level performance alongside optimized capital expenditure.

Private Label vs. Original Manufacturers (OEM)

A common trap for buyers is confusing true OEMs with private label resellers. Many “brands” are merely trading companies that slap a sticker on generic, light-duty hdpe pipe welding machines from mass-market factories. These units frequently lack the traceability and quality control essential for gas lines. True OEMs like Ekberg control the entire chain: R&D, CNC machining, and assembly. This ownership allows for specific oil-field modifications—like hardened hydraulic seals and reinforced guide shafts—that resellers simply cannot provide.

Comparing After-Sales Support Models

Support models differ wildly. Legacy brands lean on vast networks of third-party distributors. While this provides local presence, it can create “telephone game” delays during complex troubleshooting. Conversely, Ekberg’s factory-direct model links field engineers straight to the manufacturing technical team. On complex gas line projects, where welding parameters might need tweaking for specific pipe resin batches, this direct line is invaluable for keeping the project moving.

Essential Technical Features for Heavy-Duty Performance

To survive the scrutiny of pipeline inspectors, a butt fusion welding machine must boast specific technical attributes.

Hydraulic System Precision and Pressure Maintenance

The hydraulic system is the heart of the hdpe fusion machine. For oil and gas, a closed-loop system is mandatory. It must be capable of “drag pressure compensation”—automatically calculating the force needed to move the carriage and adding it to the theoretical fusion pressure. Crucially, the system must hold pressure with zero leaks during cooling. Ekberg butt fusion machines employ high-grade accumulators and check valves to lock fusion pressure within ±0.1 MPa for the entire cooling phase, preventing brittle weld structures.

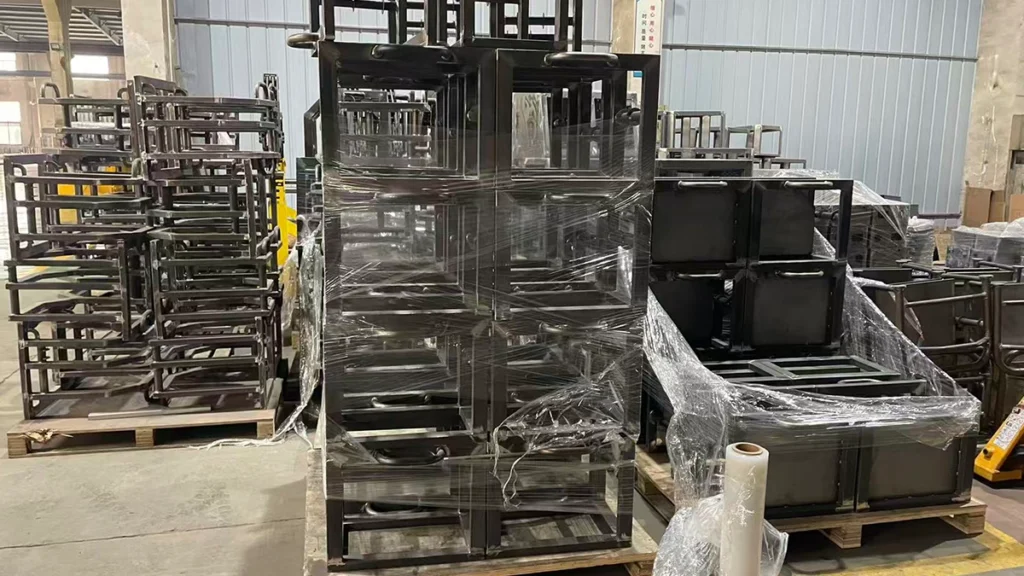

Chassis Rigidity and Alignment Accuracy

Alignment is everything. The machine must mate two pipe ends with perfect concentricity. Heavy-duty machines feature chassis machined from solid aluminum or steel billets, not welded tubes. They also use hardened, chrome-plated guide shafts that resist bending. This rigidity guarantees that when fusing SDR 9 pipe at maximum force, the pipe ends won’t deflect, ensuring a uniform bead around the entire circumference.

Heating Plate Thermodynamics and Coating Life

The heating plate must deliver consistent thermal energy. For PE4710 materials, surface temperature usually needs to hover between 200°C and 230°C. Electronic temperature control systems far outperform mechanical thermostats, offering ±3°C precision. The non-stick coating matters, too. Ekberg applies a double-layer PTFE coating designed to survive thousands of fusion cycles. If the coating degrades, the pipe sticks to the heater during removal, ruining the melt pattern and failing the joint.

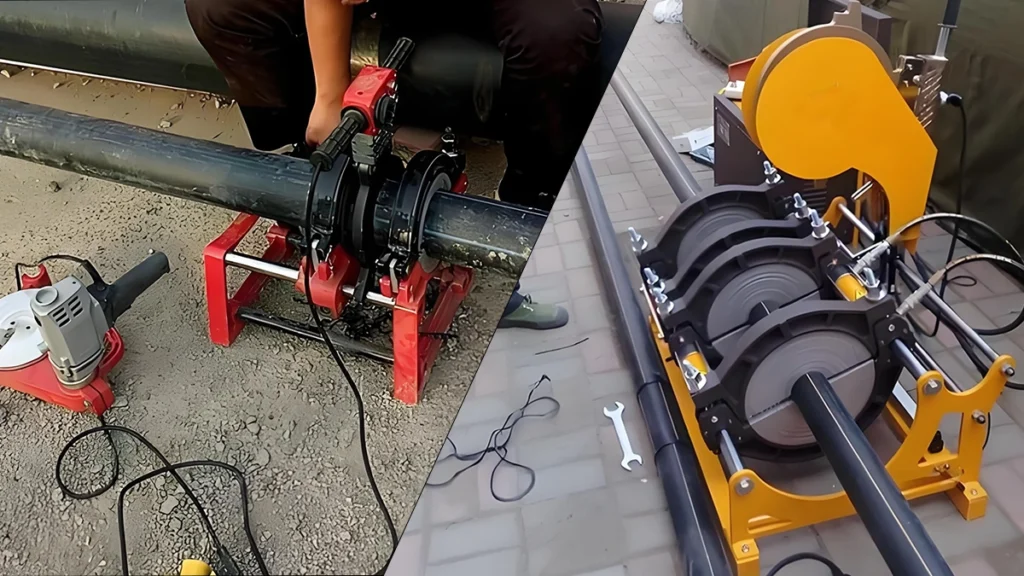

Automation Levels: CNC vs. Hydraulic Semi-Auto

While manual butt fusion machines exist, they are rapidly vanishing from critical energy infrastructure projects due to human error risks.

• Hydraulic Semi-Auto: The operator manages the phases, but the hydraulic butt fusion machine holds the pressure.
• Full CNC: The automatic butt fusion machine reads pipe parameters and executes the bead-up, heat soak, and cooling cycle robotically.

For oil and gas, CNC is the gold standard. It removes the temptation for an operator to cut the cooling cycle short—a notorious cause of long-term joint failure.

Data Logging and Traceability: The Oil & Gas Standard

In the modern energy sector, a weld without data is a failed weld. Traceability is just as vital as the physical connection.

ISO 12176 Compliance and Traceability Codes

Advanced butt fusion machines come equipped with data loggers compliant with ISO 12176 standards. These systems use barcode scanners to read the pipe’s traceability code (capturing resin batch, manufacturer, and production date) and the welder’s ID badge. This builds a digital thread linking every joint to a specific operator and material batch—essential for asset management and liability protection.

Real-Time Welding Parameter Monitoring

During fusion, the butt fusion machine’s computer acts as a vigilant supervisor, monitoring heating plate temperature, drag pressure, fusion pressure, and cooling time. If any parameter drifts outside pre-set tolerances (e.g., a 5% pressure drop during cooling), the hdpe fusion machine aborts the weld or flags the record. This real-time quality control stops non-compliant joints from ever being buried.

The Importance of Tamper-Proof Reporting

Once complete, the butt fusion machine generates an encrypted, tamper-proof report (typically PDF or binary). These reports visualize the fusion curve—pressure vs. time—and are submitted to pipeline inspectors for sign-off. Ekberg data loggers are engineered to prevent manipulation, ensuring reports submitted to regulatory bodies like the DOT or local gas authorities remain authentic and verifiable.

Ekberg Factory Capability, Certification & Global Support

Ekberg Welding has carved out its reputation as a premier manufacturer by focusing on the engineering depth heavy industry demands.

In-House CNC Machining and Quality Control

Unlike assemblers who purchase off-the-shelf parts, Ekberg plastic pipe welding machines its own components. The factory floor is equipped with advanced CNC centers that mill hydraulic cylinders and chassis frames to micron-level tolerances. This vertical integration ensures every butt fusion machine leaving the dock meets the strict alignment and pressure-holding requirements of API 15LE.

Rigorous Testing Protocols for High-Pressure Ratings

Every Ekberg butt fusion machine faces a “Simulate Field Condition” test before shipping. This includes a pressure holding test at 1.5x the maximum operating pressure to verify seal integrity and thermal mapping of the heating plate to hunt for cold spots. Only machines passing this 100% inspection make it into a crate.

Global Logistics and Spare Parts Availability

Downtime kills profitability. Ekberg tackles this with a modular design philosophy. Components like hydraulic seals, relays, and heating elements are built for rapid field replacement. The company maintains a global logistics network capable of rushing critical spares to international oil fields within days, keeping project interruptions to a minimum.

Training and Certification Support

Equipment is only as capable as its operator. Ekberg provides comprehensive training materials grounded in DVS 2207 and ISO 21307 standards. This ensures contractor crews don’t just know which buttons to push, but understand the physics of fusion, leading to safer, more reliable pipelines.

Comprehensive Buyer’s Guide: Selecting the Right Butt Fusion Machine

To streamline your procurement, use this framework to match equipment to your specific project needs.

Matching Machine Size to Pipe Schedule (SDR)

Selecting a butt fusion machine isn’t just about diameter; it’s about wall thickness (SDR). A hdpe pipe welding machine might physically fit a DN630 pipe, but if that pipe is SDR 7 (thick wall), a standard butt fusion machine may lack the hydraulic force to fuse it properly.

Evaluating Total Cost of Ownership (TCO)

A light-duty butt fusion machine might be 30% cheaper upfront, but the TCO calculation reveals a different reality. A heavy-duty butt fusion machine with a 10-year lifespan and rebuildable components costs significantly less per weld than a budget unit that needs replacing after two years of rough field abuse. Furthermore, the cost of a single failed joint—excavation, repair, fines—often eclipses the purchase price of the entire machine.

Checklist for Vendor Due Diligence

Before signing that purchase order, ask these critical questions:

• Certification: Is the calibration certificate for the pressure gauge and temperature probe less than a year old?
• Pressure Rating: Can this butt fusion machine fuse SDR 7 pipe at max diameter with sufficient drag pressure reserve?
• Data: Is the data logger integrated, and does it export encrypted, compliant reports?
• Support: Do you stock spare hydraulic seals and electronic relays for immediate dispatch?

Frequently Asked Questions

Q1: What distinguishes a manual machine from a CNC automatic butt fusion machine for gas pipelines?

A manual butt fusion machine relies on the operator to calculate pressures and time cycles, which introduces a high risk of human error. A CNC (Computer Numerical Control) machine automatically reads pipe parameters, calculates the required fusion pressure and cooling time based on ISO/API standards, and controls the hydraulics robotically. For gas pipelines, CNC is strongly recommended to ensure consistent, compliant joints.

Q2: Can Ekberg butt fusion machines weld pipes with different SDR ratings?

Yes. Ekberg butt fusion machines are compatible with the full range of Standard Dimension Ratios (SDR), from thin-wall SDR 33 to heavy-wall SDR 7.4. The hydraulic systems are designed with high-pressure reserves (up to 6.3 MPa system pressure) to generate the necessary interfacial force for thick-walled high-pressure gas pipes.

Q3: How often do heavy-duty hdpe fusion machines require calibration for oil and gas projects?

Most international standards (ISO 21307) and local gas authorities require calibration of the pressure gauge and temperature probe every 12 months. However, for critical high-pressure projects, some inspectors may mandate calibration every 6 months or before starting a major pipeline segment. Ekberg provides calibration services and certification.

Q4: Does Ekberg provide data loggers compatible with local gas authority reporting standards?

Yes. Ekberg machines feature integrated data loggers that record all critical welding parameters (time, temperature, pressure) alongside operator ID and GPS location. The system generates tamper-proof PDF or binary files that meet the traceability requirements of ISO 12176, ensuring acceptance by pipeline inspectors and utility authorities globally.

Q5: What is the lead time for shipping heavy-duty machines to international oil fields?

Unlike distributors dependent on stock levels, Ekberg is a factory-direct OEM. We typically dispatch standard models within 2-4 weeks. For urgent requirements, we can expedite shipping logistics to reach international oil fields, ensuring your project timeline stays on track.

Conclusion

The integrity of an oil and gas pipeline is defined by its weakest link. In an industry where safety and environmental stewardship are paramount, compromising on butt fusion machines is a risk no contractor should accept. While legacy brands offer familiarity and budget brands offer low initial costs, neither truly optimizes the balance between engineering performance and capital efficiency.

Ekberg Welding stands as the premier choice for decision-makers who demand the durability of Tier 1 equipment—complete with Siemens electronics, closed-loop hydraulics, and full API compliance—backed by the agility and value of a factory-direct partnership. By choosing heavy-duty equipment designed specifically for high-pressure applications, you ensure the longevity of your infrastructure and the profitability of your operation.

Ready to equip your fleet with fusion technology built for the energy sector? Contact Ekberg Welding today for a technical consultation, a comparative quote against legacy brands, or to request our full catalog of API-ready fusion machines.
